瑞安市浩翔塑料機械有限公司
0577-65633930

咨詢

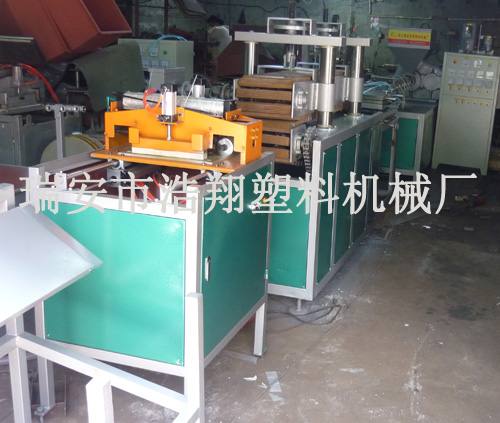

箱包蜂巢板生產線2

箱包蜂巢板生產線2
點擊圖片查看大圖
詳細信息
用途與特點:

本機主要用來生產PVC.ABS.PP等塑料蜂巢板;是箱包內襯用板;室內裝飾扣板,童車,以及建筑,包裝等塑料蜂巢板生產的必備設備.該機組生產的蜂巢板表面光滑平整,無裂縫,無氣泡,無麻點,定長定寬設計.自動切割,操作方便,設計合理.


USES and features: this machine is mainly used to produce PVC, ABS, PP and other plastic honeycomb plate; Is the bag lining board; Interior decoration gusset plate, baby carrier, and construction, packaging, etc., a necessary equipment for the production of plastic honeycomb board. The unit production of honeycomb plate surface smooth level off, no cracks, no bubble, no pitting, fixed-length fixed width design. Automatic cutting, convenient operation, reasonable design.

主要技術參數/ The main technical parameters:
型號Model /參數Date 長徑比/ Aspect ratio 產量/ Yield 螺桿轉速/ screw speed 驅動功率/ Drive power 牽引功率/ Traction power
45型 1:25 20-30 0-75 5.5KW變頻 1.1KW
50 1:25 30-60 0-75 7.5 1.1KW
65 1:25 60-100 0-75 11 2.2KW
70 1:25 70-120 0-70 15 2.2KW
80 1:25 75-130 0-70 18.5 2.2KW
90 1:24 80-150 0-70 22 2.2KW
110 1:23 90-180 0-70 30 2.2KW
