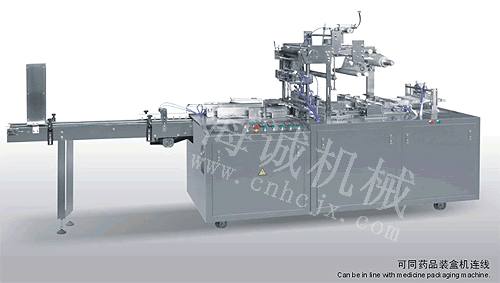

HSP-300B型透明膜三維包裝機(疊加式)

點擊圖片查看大圖

詳細信息

用途：Use

該機廣泛用于藥品、食品、保健品、化妝品、文具用品、音像制品等行業中的各種盒式物品的單件或多件（集合包裝）自動包裝。如對盒裝藥品、食品；條包香煙、撲克；盒裝光盤、磁帶、餐巾紙等物品的包裝。

This machine is widely used for packaging various box products (single or several boxes)in drug, food, health products, cosmetic, stationery, and sudio-vidio products, such as the packing of box drug and food, packing of carton cigarette and poker, packing of box CD/VCD, tape and napkin paper etc.

特點：Features

1.本機采用PLC 人機界面控制。
2.送膜系統采用伺服電機，送膜尺寸定位準確。
3.動作全部采用氣缸驅動，具有運行穩定可靠。
4.封口牢固、平整美觀。

This machine adopt PLC+hunan machine interface control system.
Film conveying system is controlled by servo motor and size of film
conveying can be adjusted freely.
The machine is fully driven by air cylinder, stable running.
Firm seal, smooth and nice.

主要技術參數 Main Technical parameter

包裝材料	Packing materials	OPP.BOPP.PVC 薄膜film (防偽易拉線 Antiforging gold-drawing-line)
包裝速度	Packing speed	15-35bags/min
包裝尺寸	Packing size	(L)60-300 (W)50-240 (H)15-90mm
工作氣壓	Working pressure	0.6Mpa
電源功率	Power supply	AC380V 50Hz 6.5kw
機器尺寸	Machine dimensions	1.主機Main machine:(L)2300×(W)870×(H)2100mm 2.輸送機Conveyer:(L)1650×(W)400×(H)1000mm
整機重量	Machine weight	750kg
