膜寬（毫米）
Film width (mm)
|
100~320
|
|
制袋尺寸（毫米）長*寬
Bag size (mm) length * width
|
50*40~200*150
|
|
卷材直徑（毫米）
Roll diameter (mm)
|
≤300
|
|
包裝速度（袋/分鐘）
The packing speed (bags / minute)
|
35~100
|
|
電源總功率（千瓦）
Total power (kw)
|
2.5 kW 220/380 V±10% 50 Hz
|
|
機器尺寸（厘米）長*寬*高
Machine size (CM) length * width * height
|
65*85*170
|
|
整機重量（千克）
Machine weight (Kg)
|
≤250
|
適用范圍：
Scope of application:
本機適用于膨化食品、蝦條、麥片、瓜子、白糖、食鹽等松散無粘性粉狀、粒狀物品自動包裝，還適用于藥品、茶葉、種子等物料包裝。

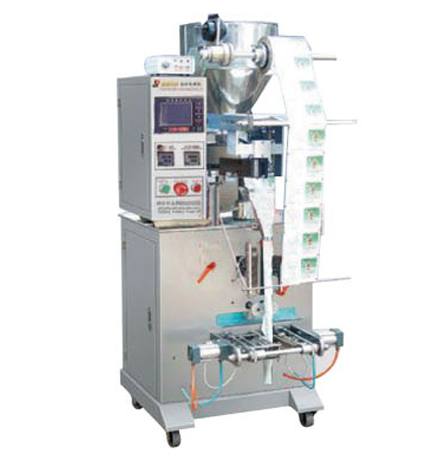

This machine is suitable for puffed food, shrimp, oatmeal, melon seeds, white sugar, salt and other loose non adhesive powder, granular material automatic packaging, can also be applied to medicine, tea, seeds and other packaging materials.
功能特點：
?Function characteristics:
1、加料、制袋、充填、封口、裁切全自動完成，并帶有自動計數；配碳帶日期打印（如需充氮，可與充氮機匹配）；自動控溫，自動光電跟蹤，變頻無極調速。
2、三邊封也可四邊封，鋸齒形切口
1, feeding, bag making, filling, sealing, cutting is finished automatically, and with automatic counting; with ribbon date printing (for nitrogen, can be matched with the nitrogen charging machine); automatic temperature control, automatic photoelectric tracking, frequency conversion stepless speed regulation.
2, three side seal can be sealed edges, zigzag incision
包裝材料：
Packaging.
紙/聚乙烯、玻璃紙/聚乙烯、聚酯/鍍鋁/聚乙烯、聚酯/聚丙烯、BQPP薄膜、尼龍/聚乙烯、茶葉過濾紙等熱封復合材料。
Paper / PE, Pt / PE, PET / Plated Al / PE, PET / PP, BQPP film, nylon / polyethylene, tea filter paper heat sealing composite material.
