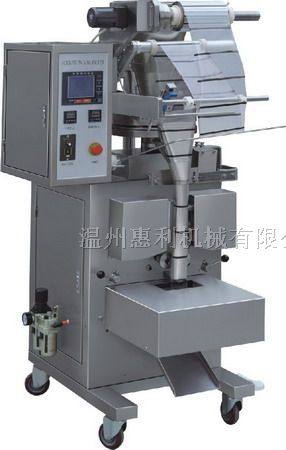

SJIII-K100自動顆粒包裝機

SJIII-K100自動顆粒包裝機
點擊圖片查看大圖
詳細信息
特點 Features

背封,三邊封,四邊封包裝形式

包裝運行數據及調節在顯示屏上直觀顯示,直接操作

裝配光電控制裝置保證包裝袋圖案完整

自動完成制袋,計量,充填,封合,斷切,計數,打印批號

殼體及物料接觸部位使用不銹鋼材料
Back sealing, three-side sealing, four-side packing method
The packing running data and adjustment are directly displayed on the display. The user can directly operate it on the displayer.
Equipped with a photoelectric controller to ensure that its packing bag patterns are perfect.
It can automatically finish making-bag, metering, filling, sealing, cutting, counting
and printing batch number.
The body and the parts touching the material are made of stainless steel.

適合物料 Suitable material

食品,醫藥,化工,種子,日化行業松散狀無粘性顆粒物料
It is applicable for packing foodstuff, medicine, chemical industry, seed, and the loosing
non-sticking granule daily chemical industry.

技術規格 Technical specifications
型號

Type

SJIII-K100

SJIII-K300
制成袋長 mm

bag-making length

50-170

50-280

制成袋寬 mm

Bag-making width

25-120

70-190
包裝薄膜寬度 mm Packing film width 60-240 160-380
包裝容量 ml

Packing capacity

5-100

50-1400

包裝速度 bags/min

Packing speed

35-70

20-40

功率 Kw power

1.6

1.65

氣源 Mpa

air power

0.6

0.65
耗氣量 L/min

air consumption

100 100
外形尺寸 mm

Overall Dimension

760×980×1800

900×1120×2360
整機質量 Kg

Weight

300 480
